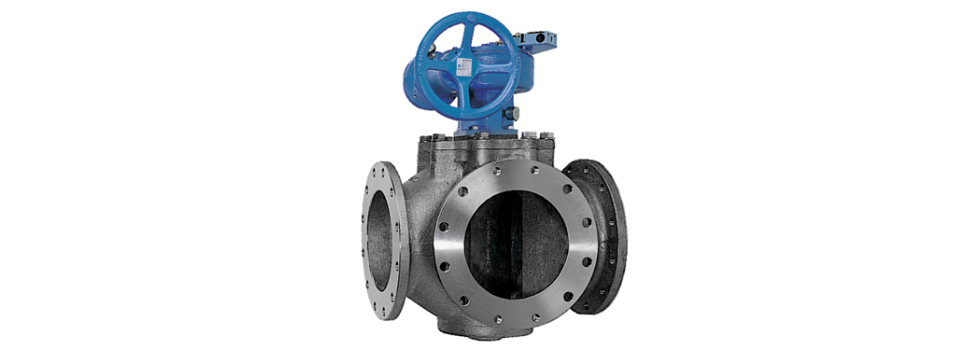

Orbinox 3/4V MODEL

3/4 way valve for high solids concentration media or fluids in pulp & paper

The 3V and 4V models are diverter valves designed to handle fluids with solids in suspension. Mainly used for pulp stock in the Pulp and Paper industry.

Sizes

• DN 80 to DN 300 (other dimensions on request)

Working Pressure

• DN 80 to DN 300: 10 kg/cm²

Standard Actuator

• Handwheel w/ Bevel gear
• Pneumatic double acting

Standard Flange Connection

• EN1092 PN10 and ANSI B16.5 (class 150)

Other flange connections are available on request.
