Williams API 600 and 6D Design

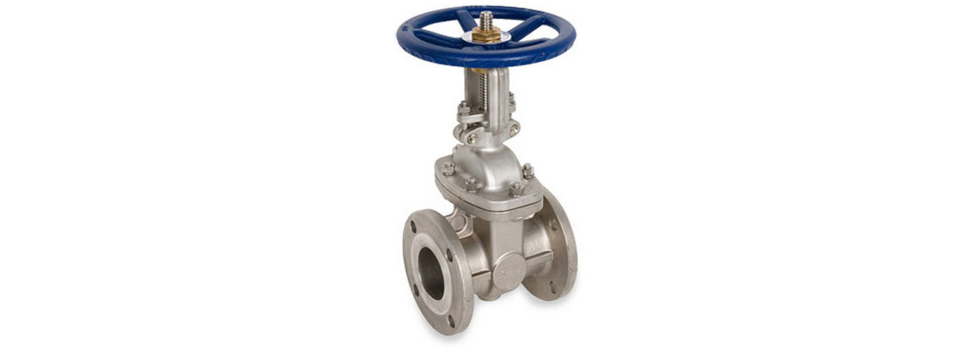

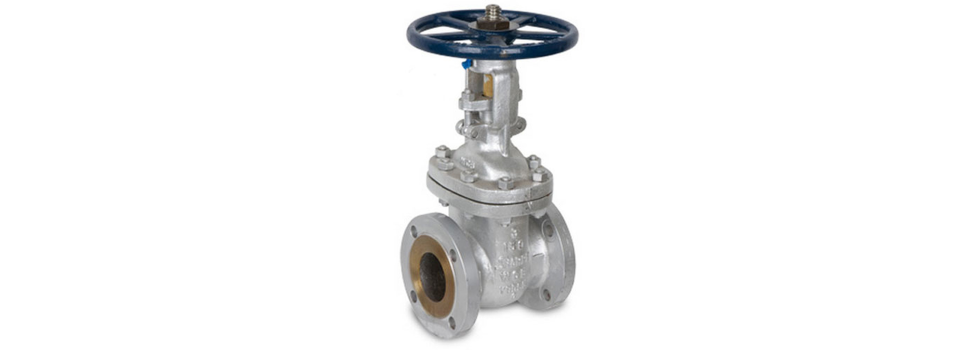

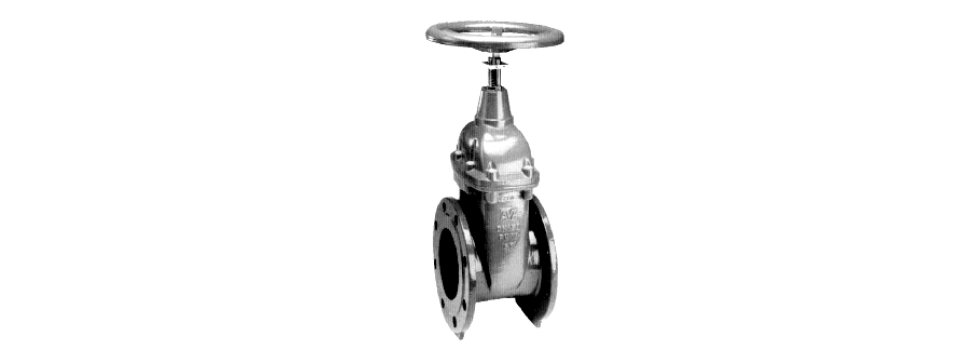

RISING STEM (OS&Y) AND NON-RISING STEM (NRS) GATE VALVES

Gate valves are multi-turn valve with full port flow path. They are ideal for full open and full closed position and are available in rising stem or Non-rising stem configuration. They are available with flanged ends, butt-weld ends, and socket-welded and screwed end. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low flow resistance. They are equipped with handwheels and are available with bevel gears, spur gears, electric, pnuematic and hydraulic actuators.

Product Overview

  • API 600 and 6D Design
  • Seal-welded seats
  • Bosses for taps & bypass
  • Ring Joint Bonnet gaskets
  • For Class 600-2500 Valves
  • Fully guided, wedge
  • Fugitive emission tested

Options

  • Body Material: WCB, A105, LF2, LCC & 316SS
  • Trim Material: 1/2 and Full Stellite Trim, Bronze, Stainless Steel NACE MR-01-75
  • Mounting Pads for Actuation
  • Pressure Seal Bonnets For Class 600-2500
  • Aluminum Bronze and Bronze Trims for Marine Service
