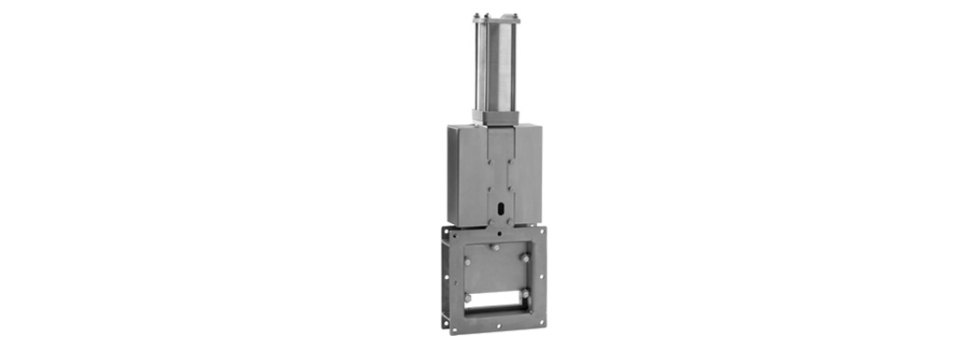

Orbinox BC (SER.90) MODEL

Uni-directional square port fabricated knife gate valve for discharge, material and bulk handling applications

The BC model knife gate is a square port low-pressure valve for solid loaded fluids, mainly used in bulk handling and silo outlet applications in industries such as:

  • Chemical plants
  • Wastewater treatment Plants
  • Power plants
  • Mining
  • Food and Beverage
  • etc.

Sizes

  • From DN 150 x 150 to DN 600 x 600 (other dimensions on request)

Working Pressure

  • 150 x 150 to 600 x 600: 1 bar

For Higher Pressure

  • Casted bodies (on request)
