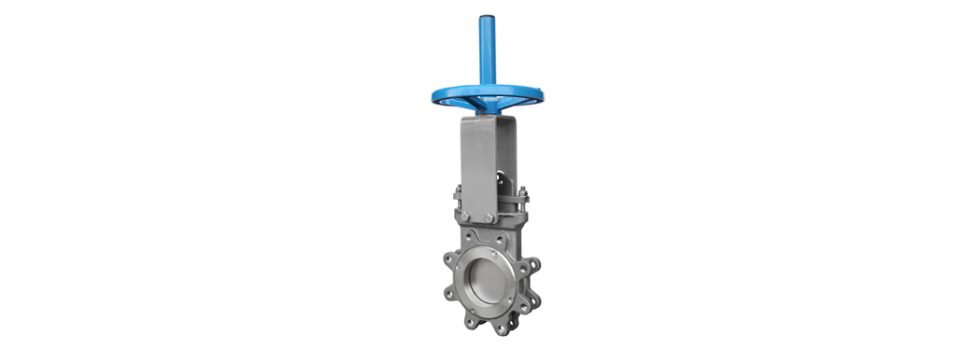

Orbinox BT (SER.22) MODEL

Bi-directional MSS SP-81 lug type knife gate valve for general industrial and water applications

The BT model knife gate is a bi-directional lug type valve designed according to MSS-SP-81 and TAPPI TIS 405-8 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:

• Pulp and Paper
• Power plants
• Mining
• Chemical plants
• Wastewater
• Food and Beverage
• etc.

Sizes

• DN 2"/50 to DN 24”/600 (larger diameters on request)

Working Pressure

• DN 2"/50 to DN 24”/600: 150psi / 10 bar

Standard Flange Connection

• ANSI B16.5 (class 150)
