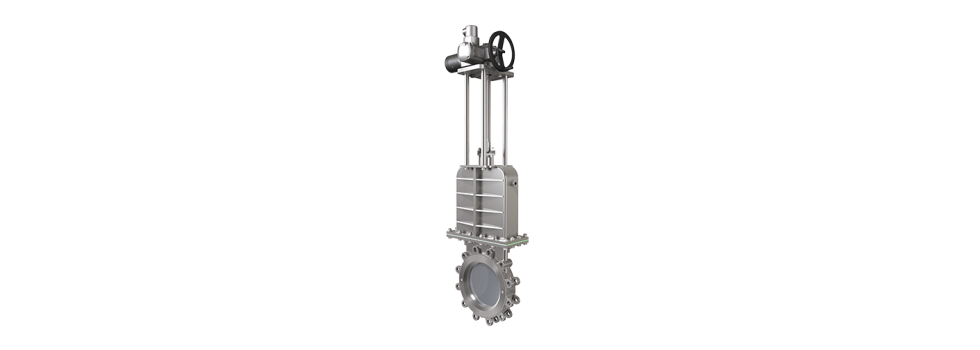

Elite E5000 Specialty Knife Gate Valve

Class 150 | 2″ to 48″ | E5000

Design and Construction

  • 2” to 42”
  • Lug body design to ANSI Class 150
  • Manufactured to: MSS SP-135
  • Cast in North America using sand casting technology
  • Standard alloys available include: WCB (carbon steel), 304, 316, 317 and 2205
  • Optional alloys: Hastelloy, Monel, 904L, and 254SMO
  • Metal or resilient seat options available (EPDM, Buna, Viton, and Teflon)
  • Standard handwheel operation with double start threaded stem
  • Heavy fabricated yoke made from carbon steel, with a corrosion resistant powder coated finish

Available Options

  • Standard with manual hand wheel, chain-wheel, bevel gear, pneumatic/hydraulic cylinder of electric motor
  • Bi-Directional Isolation available
  • Epoxy coated ductile iron hand wheel
  • Chain-wheel
  • Bevel gear
  • Pneumatic cylinder
  • Electric actuator
