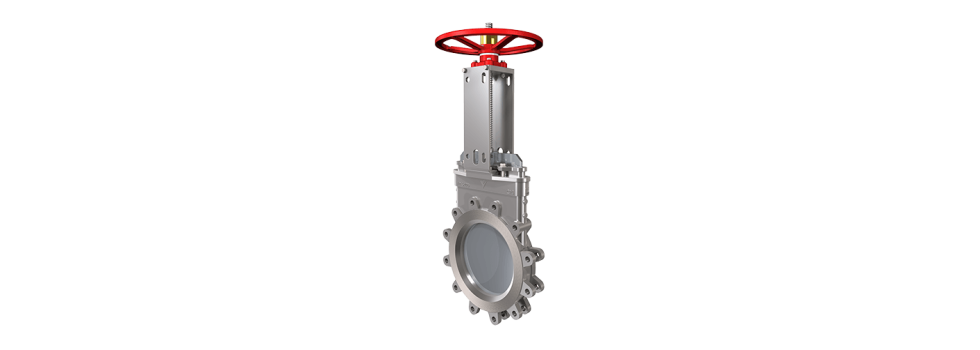

Elite E5100 Bidirectional General Purpose Knife Gate Valve
150 PSI | 2″ to 60″ | E5100
Design and Construction
- Sizes available: 2” – 24” stock
- Handwheel operator
- Alternate operators available
- 304 or 316 stainless steel construction
- 304 stainless steel stem and yoke
- Brass grease nipple on 8” and larger
- Braided Teflon packing
- Viton seats standard
- Bronze drive bushing
- Meets AWWA C520
- Meets TAPPI-TIS 405
- MSS-SP81 dimensions
- ANSI Class 150 flange bolt pattern
Available Options
- Lockout pin
- Alternate seat materials
- Deflector cones
- Live loaded packing
- Non-rising stem
- Pressure Bonnet
- Stem extensions
- Actuator mounting plate (electric, hydraulic, pneumatic)
- Proximity switches (with brackets)
- DIN flange bolting pattern
|
|
