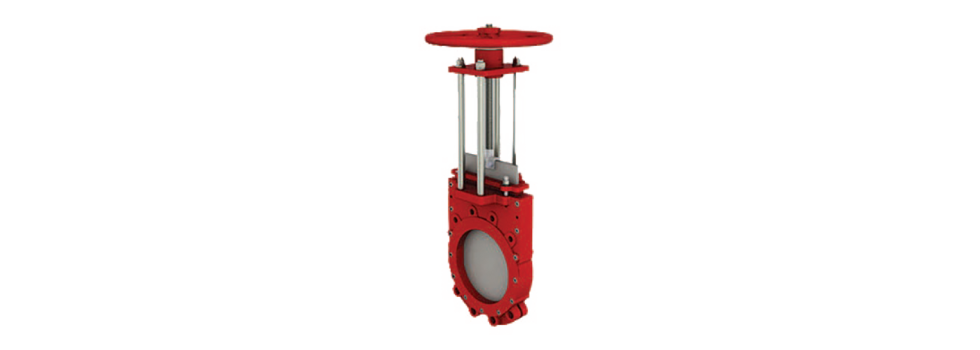

Elite E5200 Perimeter Seated Knife Gate Valve

Class 150 | 2″ to 24″ | E5200

Design and Construction

  • Sizes available: 2” – 24” stock
  • Handwheel operator standard up to 12”
  • Gear operator standard on 14” and above
  • Powder coated ductile iron body
  • 304 stainless steel polished gate and stem
  • Braided Teflon packing
  • EPDM perimeter seat
  • 304 stainless steel stanchions
  • Bronze drive bushing
  • Full port opening
  • MSS-SP81 dimensions
  • ANSI Class 150 flange bolt pattern

Available Options

  • Body and gate in 316 stainless steel
  • Viton seat
  • Deflector cone
  • Energized packing
  • Live loaded packing
  • Non-rising stem
  • Stem extensions
  • Actuator mounting plate (electric, hydraulic, pneumatic)
  • Proximity switches (with brackets)
