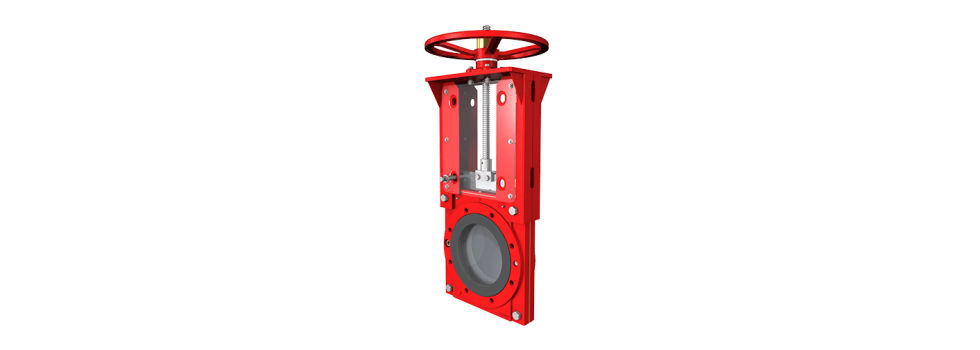

Elite E5300 Heavy Slurry Knife Gate Valve

Class 150 | 2” to 24″ | E5300

Design and Construction

  • Sizes available: 2” – 24”
  • Heavy cast WCB wafer body (sizes 2” – 12”)
  • Ductile iron (sizes 14” – 24”)
  • Standard 316 stainless steel (SS) polished & beveled gate
  • Reinforced natural rubber seats
  • Corrosion resistant stainless steel stem ACME thread
  • Fabricated steel yoke with corrosion-resistant powder coat finish
  • ISO 5211 yoke plate for direct mounting of electric, pneumatic and hydraulic actuators and bevel gears
  • Positive open & close stops
  • Standard acrylic dust cover plates
  • Heavy bronze drive bushing
  • Direct mounting holes for open & close target switches
  • Heavy safety locking pins that will accept gang lockout with heavy open & close brackets
  • Standard manual handwheel
  • Self-releasing lubricant Teflon wiper seal

Available Options

  • Body available in 304SS, 316SS, 317SS (sizes 2” – 24”)
  • Gate in RC50, 2205 (904L), Iconel 625, Hastelloy C
  • Dust cover plates in stainless steel
  • Seat available in cast urethane
  • Body flush and purge ports
  • Fabricated stem covers
  • Operator options available: electric actuator, handwheel, chainwheel, bevel gear, hydraulic, and pneumatic cylinder
