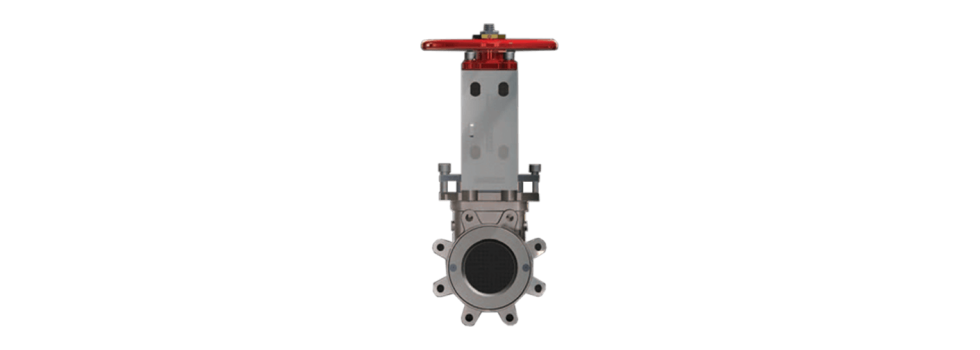

Elite E5700 Aggressive Process Knife Gate Valve

Class 150 | 2” to 14″ | E5700

Features

  • Sizes 2″ to 14″
  • Investment Cast 150# flange lug body
  • 316 stainless body and gate standard
  • Bi-directional seating with guide pins located 360 degrees around the port
  • large gland and lantern area for improved packing
  • Robust investment cast yoke assembly with direct mount cylinder flange
  • Self-flushing seat
  • suited for liquids or slurry applications

Optional Features

  • Seat materials include metal, RC50 (50C Rockwell) PTFE, Urethane, Viton & EPDM
  • V-Port gates
  • Gland Purge ports
  • Lockable gate design
  • Pneumatic and hydraulic cylinder
  • Fully bonneted top works
  • High alloys, including 317SS, 904L 254SMO, Alloy 20, Titanium, Hastelloy, Inconel, and other materials
