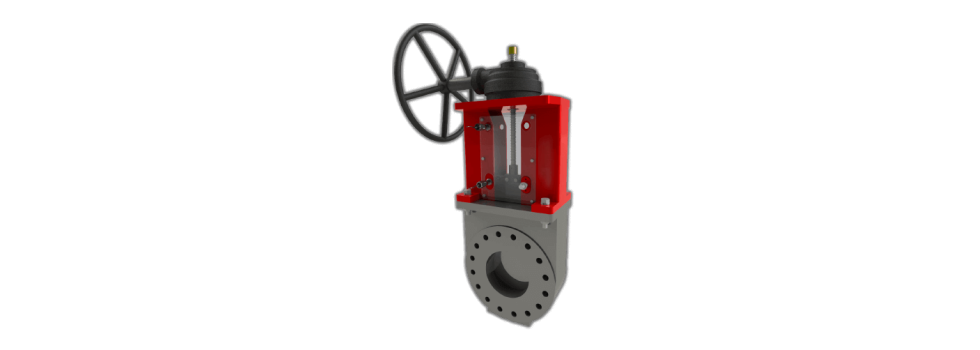

Elite E6600 High Performance Perimeter Seated Knife Gate Valve
Class 300 | 2″ to 24″ | E6600
Design and Construction
Standard Body Configuration Design: ASME Class 300 full flange
Body Materials: solid investment cast 316SS and high alloys 316 stainless steel gate, fabricated steel yoke, epoxy powder coated optional stainless steel yoke or stainless steel stanchions
Perimeter Seat Ring: Standard EPDM, and Viton, Neoprene optional
Flange Drilling: ANSI Class 300
Pressure Rating: Size 2”- 24” Class 300
Available Options
- Cast / Fabricated 2-24”
- Bi-Directional Shut Off
- Dual Horizontal OMEGA Gate Seal
- 304SS Rising Stem
- Optional Non – Rising Stem
- Transparent Polycarbonate Safety Yoke Covers
- Full Port
- Guided gate
- 316SS Ground and Polished Gate
- Standard Open/Close Lockouts
|
|
