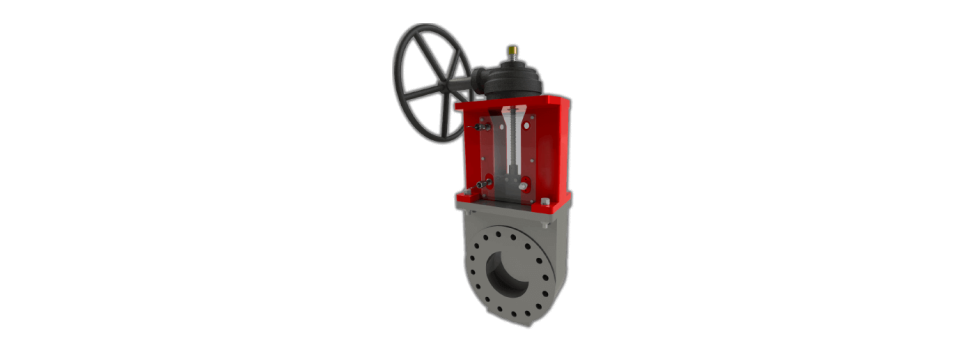

Elite E7600 High Performance Perimeter Seated Knife Gate Valve
Class 600 | 2″ to 24″ | E7600
Design and Construction
Standard Body Configuration Design: ASME Class 600 full flange
Body Materials: solid investment cast 316SS and high alloys 316 stainless steel gate, fabricated steel yoke, epoxy powder coated optional stainless steel yoke or stainless steel stanchions
Perimeter Seat Ring: Standard EPDM, and Viton, Neoprene optional
Flange Drilling: ANSI Class 600
Pressure Rating: Size 2”- 24” 1500 PSI shutoff, carbon steel full ASME rated suitable for dead-end service Cast
Available Options
- Cast 2-12”
- Fabricated 14”- 24”
- Bi-Directional Shut Off
- Dual Horizontal OMEGA Gate Seal
- 304SS Rising Stem
- Optional Non – Rising Stem
- Non-rising stem complete with operating nut or hand wheel.
- Transparent Polycarbonate Safety Yoke Covers
- Full Port
- Guided gate
- 316SS Ground and Polished Gate
- Standard Open/Close Lockouts
|
|
