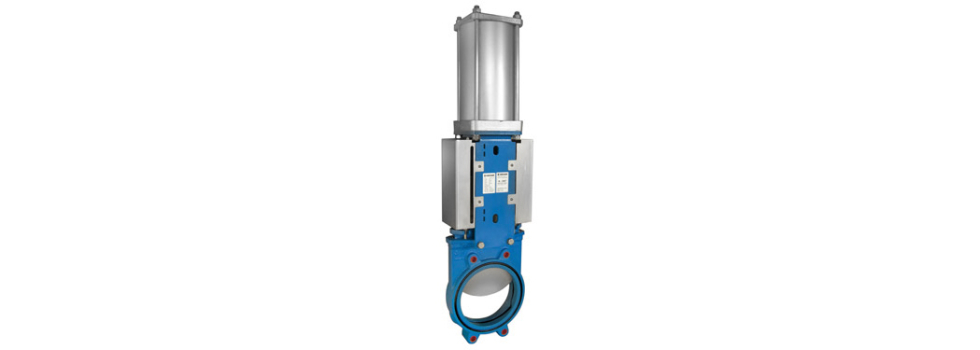

Orbinox EB (SER.11) MODEL

Bi-directional wafer style knife gate valve for general industrial and water applications

The EB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

• Wastewater treatment plants
• Chemical plants
• Food and Beverage
• etc.

Sizes

• DN 50 to DN 1200 (larger diameters on request)

Working Pressure

• DN 50 to DN 125: 16 bar
• DN 150 to DN 250: 10 bar
• DN 300 to DN 400: 6 bar
• DN 450: 5 bar
• DN 500 to DN 600: 4 bar
• DN 700 to DN 1200: 2 bar

Standard Flange Connection

• EN1092 PN10
