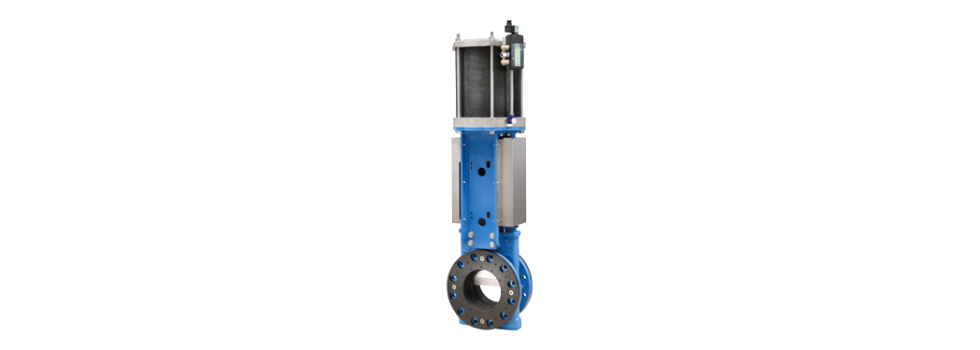

Orbinox HG (SER.68) MODEL

Slurry bi-directional high pressure full flanged knife gate valve with rubber sleeves

The HG (SER.68) model knife gate is a bi-directional full flanged heavy duty valve equipped with two metal reinforced rubber sleeves designed for use in the handling of abrasive slurries, mainly in industries such as:

• Mining
• Power plants
• Chemical plants
• Wastewater treatment
• etc.

Sizes

• DN 80mm/3" to DN 600mm/24" (larger DN on request)

Working Pressure

• DN 80mm/3" to DN 600mm/24": 20 bar (300psi)

Note: higher pressures and/or diameters on request

Standard Flange Connection

• DIN PN25 (EN 1092-2)
• ANSI B16.5 (class 300)
