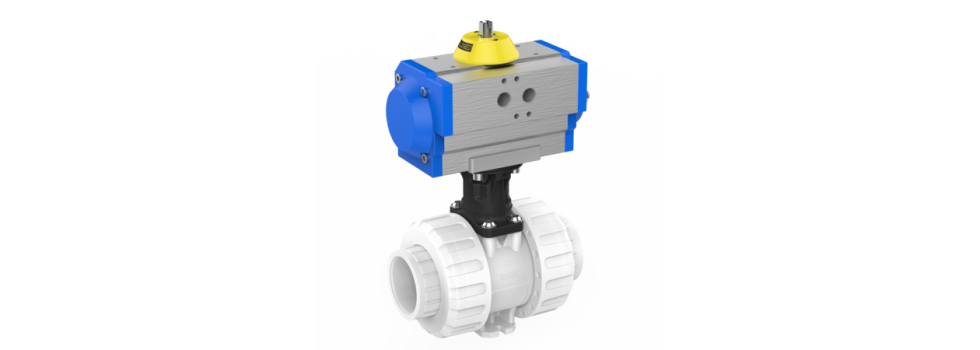

Praher 2-way Ball Valve M1 PVDF Pneumatic Actuator
- Silicon-free
- Buttress thread for perfect fit of the union nut
- Integrated bracket for fix point mounting
- Aluminium anodised body
- Aluminium epoxy powder coated end caps
- Any installation position
- Rotation angle 90°, +/- 10°
- Integrated optical position indication
Accessories:
- Limit switch box
- Solenoid valve
| Seal materials |
FPM |
| Ball seating joint |
PTFE |
| Dimensions |
DN10/d16/3/8" – DN80/d110/4" |
| Pressure rates |
PN16 |

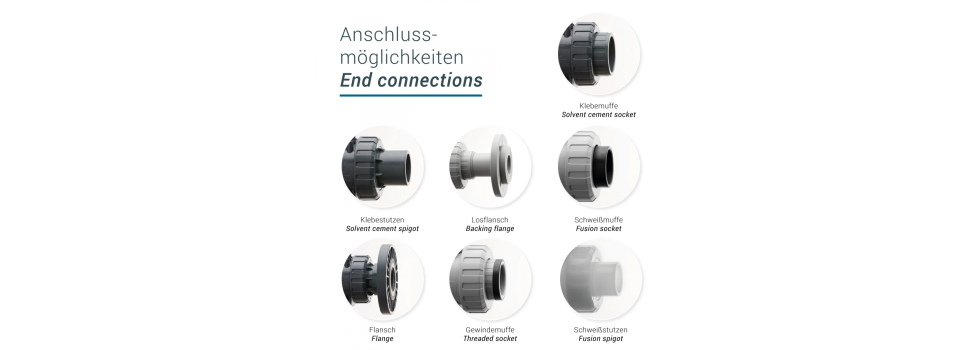

| Connections |
flange, solvent socket, solvent spigot, threaded socket |
| Approvals |
KIWA NSF/ANSI 61 |
Data Sheet
|
|
