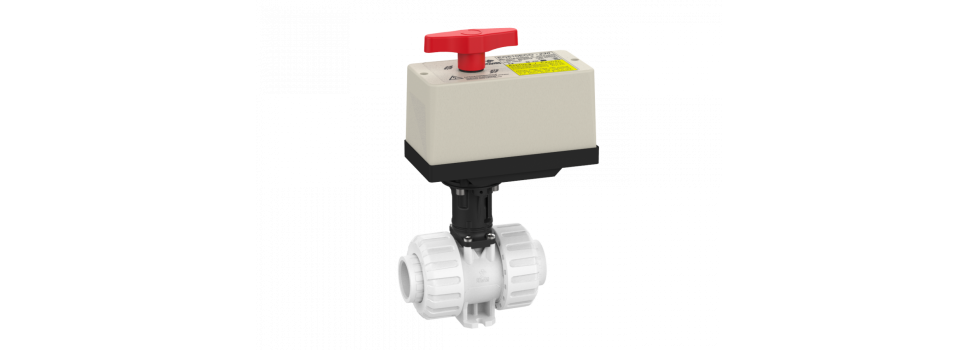

Praher 2-way Ball Valve M1 PVDF with Electric Actuator EO510
- Silicon-free
- Buttress thread for perfect fit of the union nut
- Integrated bracket for fix point mounting
- Protection class IP65
- Position feedback
- Voltage-range: 12-24V DC 24V AC (IND), 230V AC (ECO)
| Seal materials |
EPDM/FPM |
| Ball seating joint |
PTFE |
| Dimensions |
DN10/d16/3⁄8" – DN25/d32/1" |
| Pressure rates |
PN16 |
| Connections |

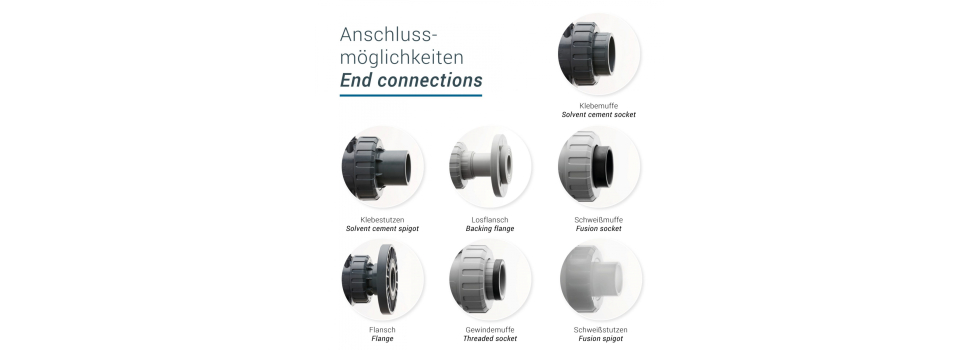

flange, fusion socket, fusion spigot, threaded socket |
| Actuator |
Electric |
| Approvals |
KIWA NSF/ANSI 61 |
Data Sheet
|
|
