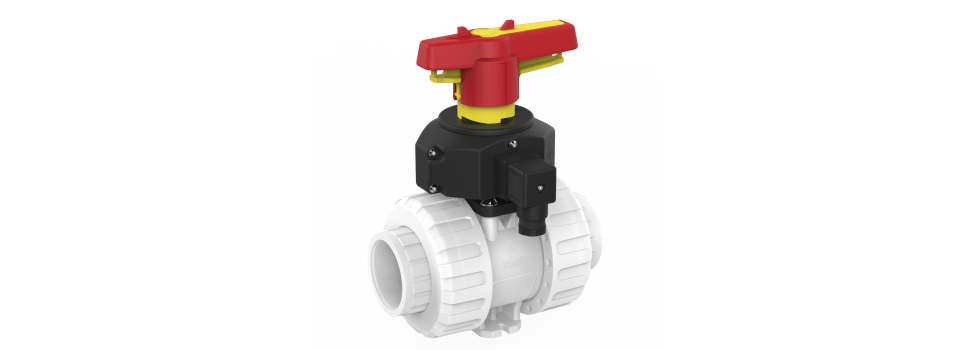

Praher 2-way Ball Valve M1 PVDF with Position Feedback



  • Modular design: Easy switch between different configurations due to special features and fitting devices
  • Silicon-free
  • Buttress thread for perfect fit of the union nut
  • Integrated bracket for fix point mounting
  • Locking handle with integrated PLS (Praher Labelling System)
  • Cushion O-ring for PTFE-seat
  • Double sealed shaft
  • Limit switch IP67 mechanical Ag-Ni incl. stainless steel bolts and device plug (on request: mechanical Au, inductive or Namur)
  • Version with plastic screws available on request
Seal materials FPM
Ball seating joint PTFE
Dimensions DN10/d16/3/8" – DN80/d110/4"
Pressure rates PN16

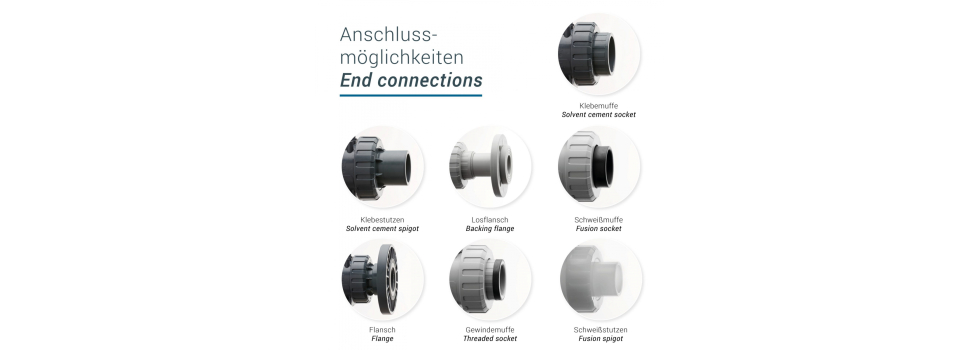

Connections flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
Approvals KIWA NSF/ANSI 61, Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG

Data Sheet
