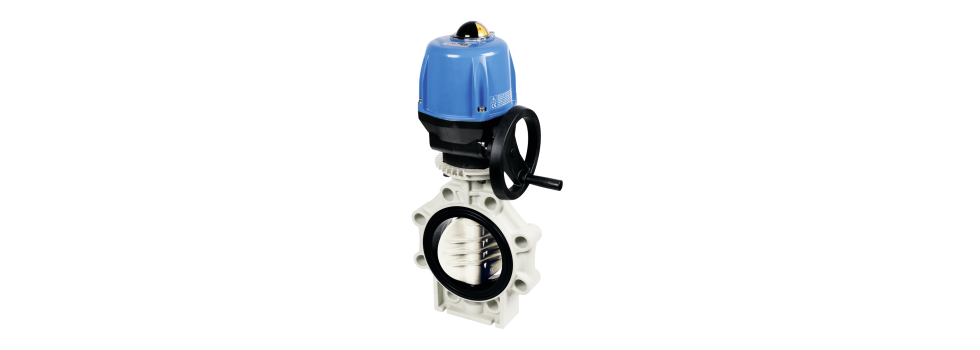

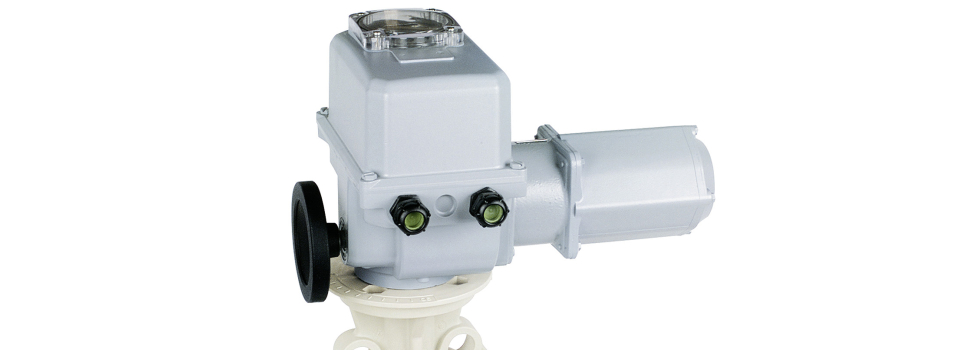

Praher Butterfly Valve K4 PP Electric Actuator Valpes
- Installation without additional adaptor or screws
- Manual override
- Protection class IP65 resp. IP67
- Position indication
- Torque and force limiters
- Travel time 6–50 sec
Accessories:
- Fail-safe
- Multivoltage
- 4–20 mA Positioner
| Seal materials |
EPDM, FPM |
| Dimensions |
DN65/d75/2½" – DN200/d225/8" |
| Pressure rates |
PN10 |
| Connections |
flange |
| Approvals |
EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission |
Data Sheet
|
|
