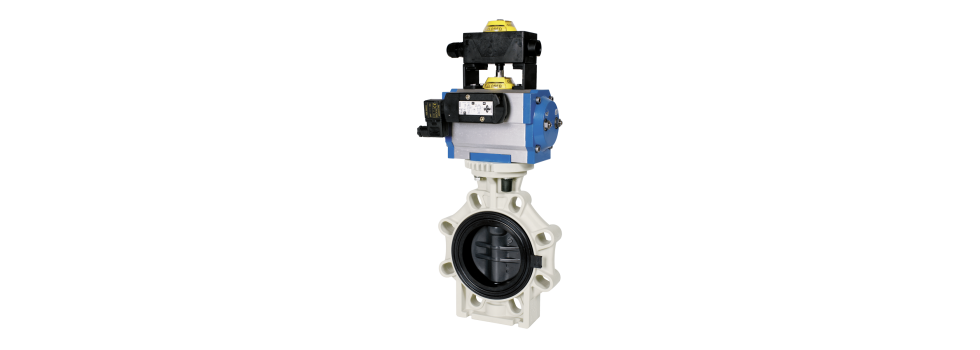

Praher Butterfly Valve K4 PVC-U Pneumatic Actuator
- Aluminium anodised body
- Aluminium epoxy powder coated end caps
- Any installation position
- Rotation angle 90°, +/- 10°
- Integrated optical position indication
Accessories:
- Limit switch box
- Solenoid valve
| Seal materials |
EPDM, FPM |
| Dimensions |
DN65/d75/2½" – DN200/d225/8" |
| Pressure rates |
PN10 |
| Approvals |
EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission |
Data Sheet
|
|
