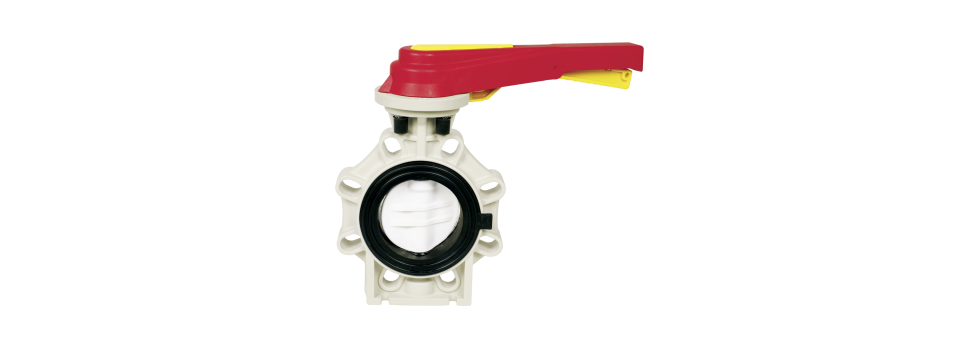

Praher Butterfly Valve K4 PVDF with Hand Lever
- Safety handle with PLS – Praher Labeling System
- Ten different locking positions
- Double sealed shaft
- Encapsulated wetted parts
- Integrated brackets for fix point mounting
- Simple upgrade to automatic actuation - ISO 5211 flange type (F07, F10)
- Mounting between DIN, ANSI, JIS flanges
| Seal materials |
FPM |
| Dimensions |
DN65/d75/2½" – DN200/d225/8" |
| Pressure rates |
PN10 |
| Connections |
flange |
| Approvals |
Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate |
Data Sheet
|
|
