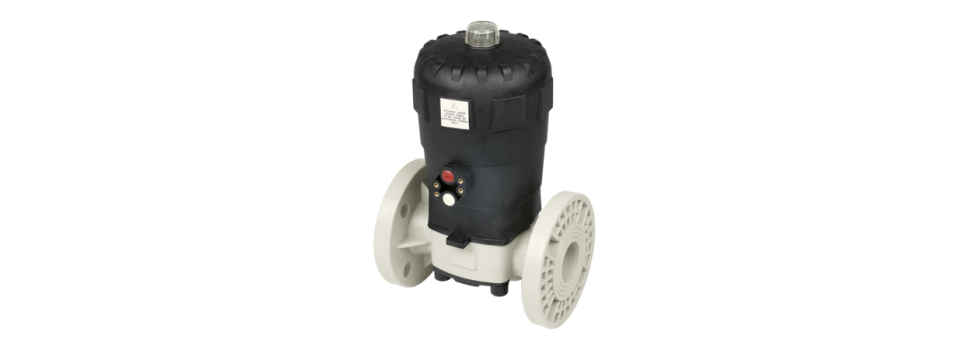

Praher Diaphragm Valve T4 PP Pneumatic Actuator
- Plastic actuator body
- Visual position indication
- Insert/outlet stainless steel
- NAMUR adaptor for solenoid valve (with adaptation for K122 and K123)
- PO-NC (single acting: fail safe close), PO-NO (single acting: fail safe open), PO-DA (double acting)
Accessories:
- Electrical position indication
- Solenoid valve with combined 5/2 and 3/2 ways function
- Compact Positioner 4–20mA/0–10V
| Seal materials |
EPDM, FPM, PTFE-coated |
| Dimensions |
DN15/d20/½" – DN50/d63/2" |
| Pressure rates |
PN10 |
| Connections |
flange, fusion socket, fusion spigot, threaded socket |
| Approvals |
EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate |
