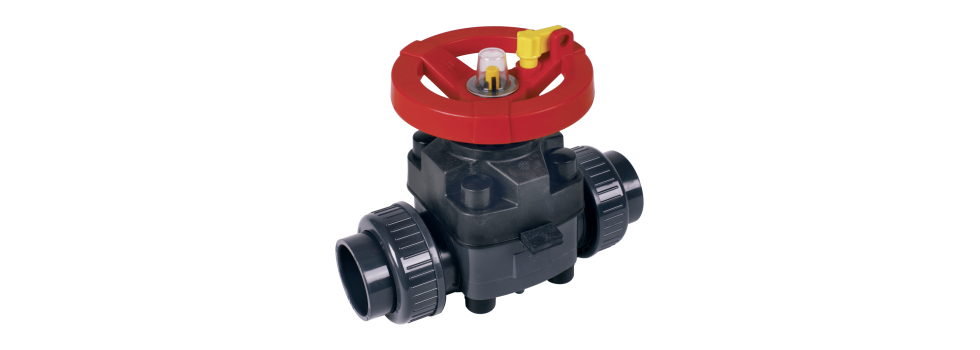

Praher Diaphragm Valve T4 PVC-U

Safety hand wheel with locking positions
Visual position indication
Zero dead leg valve
Suitable for slurries and abrasive media
High viscosity or solid content applications
Available with DIN backing flange, ANSI backing flange or fix flange DIN-ANSI-JIS

Seal materials	EPDM, FPM, PTFE-coated
Dimensions	DN15/d20/½" – DN125/d140/5"
Pressure rates	PN10
Connections	flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
Approvals	Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
