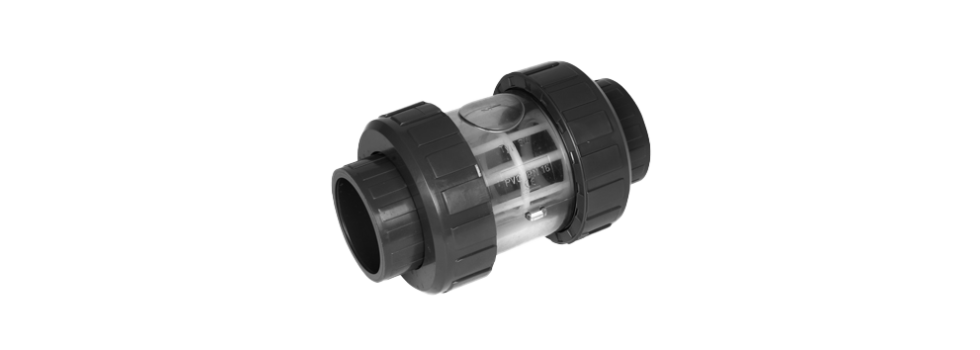

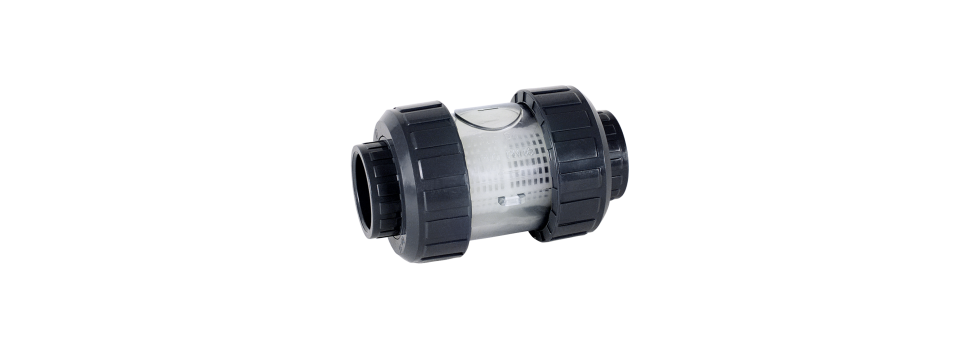

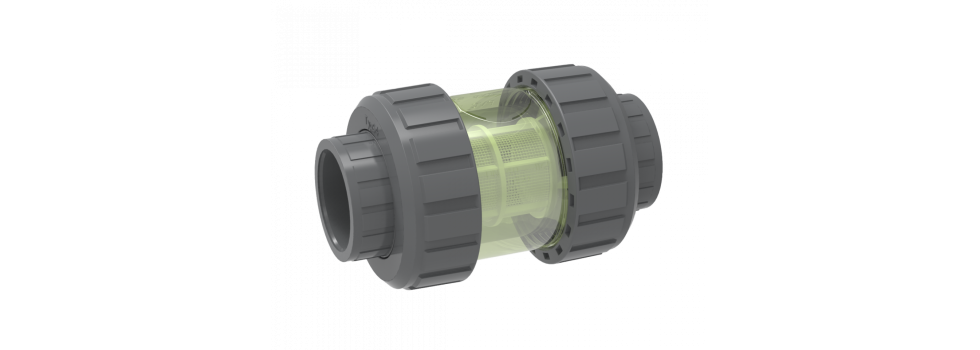

Praher Line Strainer S4 PVC-U
- Transparent body

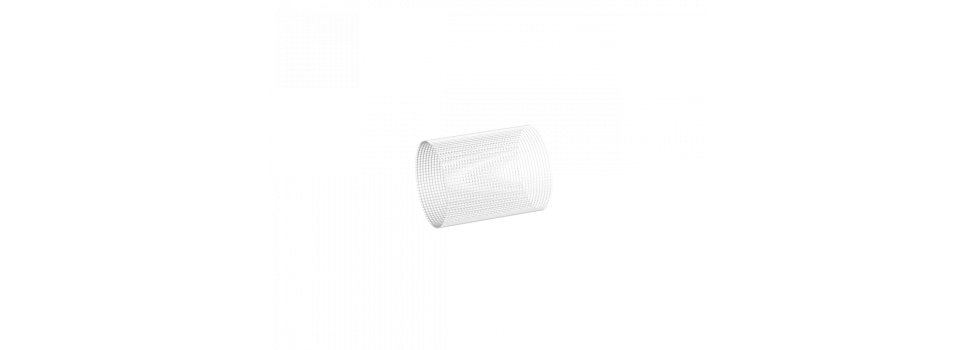

- Line strainer with PP plastic insert mesh size 1mm or 2 x 4 mm
- Stainless steel screen AISI 304, mesh size 0.5 mm, 0.75 mm or 1 mm
- High flow rate
- Also suitable as sight glass
| Seal materials |
EPDM, FPM |
| Dimensions |
DN10/d16/3/8" – DN80/d110/4" |
| Pressure rates |
PN10, PN16, PN6 |
| Connections |
flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket |
| Approvals |
Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission |
Data Sheet
|
|
