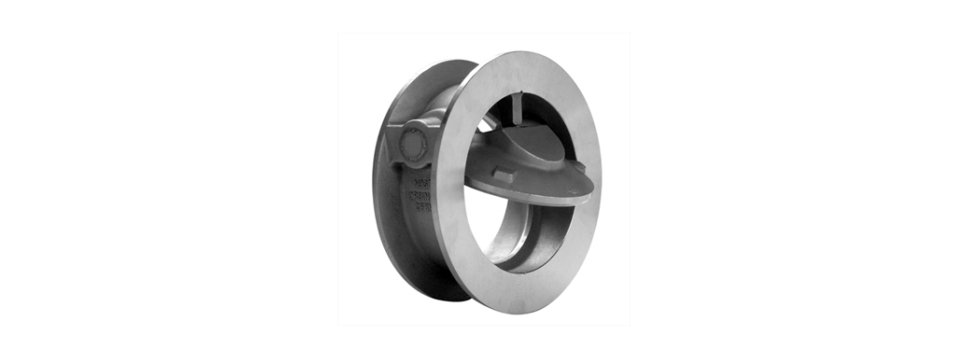

Orbinox RM (SER.35) MODEL
Metal-to-metal seat wafer style tilting disc check valve
The RM model check valve is a reliable metal seated non-return valve with oblique seating angle widely used in industries such as:
- Pulp and paper
- Wastewater treatement plants
- Food and Beverage
- etc.
Main Features
- Suitable for all the standard flanges
- Short Face to Face
- Excellent tightness according to API 598
- Low pressure drop and opening pressure
- Quick closing reaction (oblique seating) which reduces water hammer
- As an option auxiliary spring increases the closing reaction
Sizes
- DN 40 to DN 900 (larger DN on request)
Working Pressure
- ND 40 to ND 300: 40 kg/cm²
- ND 350 to ND 600: 25 kg/cm²
- ND 700 to ND 900: 10 kg/cm²
Standard Flange Connection
- EN1092 PN10/16/25/40
- ANSI B16.5 (class 150)
Other flange connections are available on request.
Face to face dimensions are according to EN 558-1 (Serie 16)
|
|
