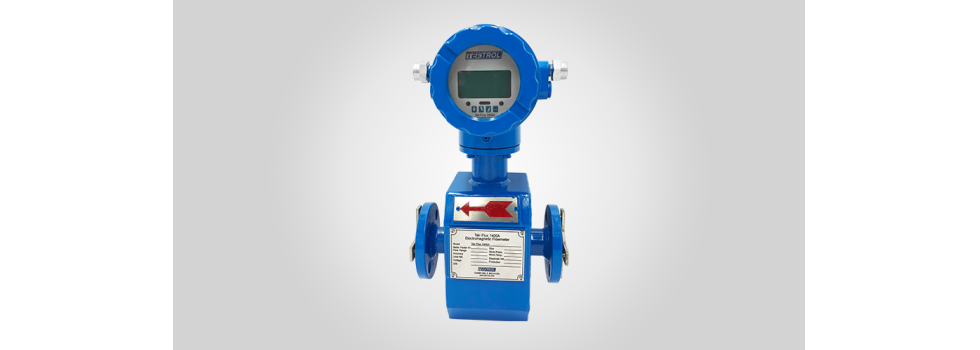

Tek-Trol TEK-FLUX 1400A Series Electromagnetic Flow Meter

Features

Wide range of nominal diameter Size ½” to 28″ (0.04 ft to 2.33 ft) with IP65 protection
Easy maintenance due to no moving parts
Uninfluenced by temperature, pressure, viscosity, and density
Used for wide application, can measure conductive fluid, without reference to fibre, solid or suspending material contained in liquid
High turndown ratio up to 1:100
It features high intelligence, with back light LCD display, menu setting control, three grades password protection, two-way measuring, slight signal removal, auto flow compensation, and other function
Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions, and safety alarms for upper and lower limit
Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption
Lining and electrode available in various materials which can measure nearly all conductive fluids
It has multiple signal output, pulse or Modbus RS485 or HART® or 4 to 20 mA
The power supply system has good voltage vibration ability
Meters batching and blending totalization
