Orbinox TL (SER.30) MODEL

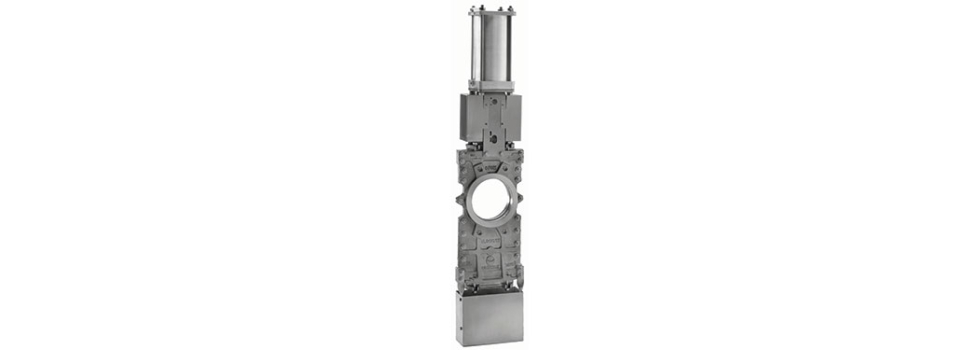

Through conduit bi-directional wafer style knife gate valve for high consistency or concentration media or fluids

The TL model knife gate is a through conduit wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:

  • Pulp & Paper
  • Wastewater Treatment Plants
  • Power Plants
  • Chemical plants
  • Etc.

Sizes

  • DN 50 to DN 1000 (larger diameters on request)

Working Pressure

  • DN 50 to DN 125: 10 (kg/cm²)
  • DN 150 to DN 250: 8 (kg/cm²)
  • DN 300 to DN 400: 6 (kg/cm²)
  • DN 450: 5 (kg/cm²)
  • DN 500 to DN 600: 4 (kg/cm²)
  • DN 700 to DN 1000: 2 (kg/cm²)

Standard Flange Connection

  • EN1092 PN10
  • ANSI B16.5 (class 150)
