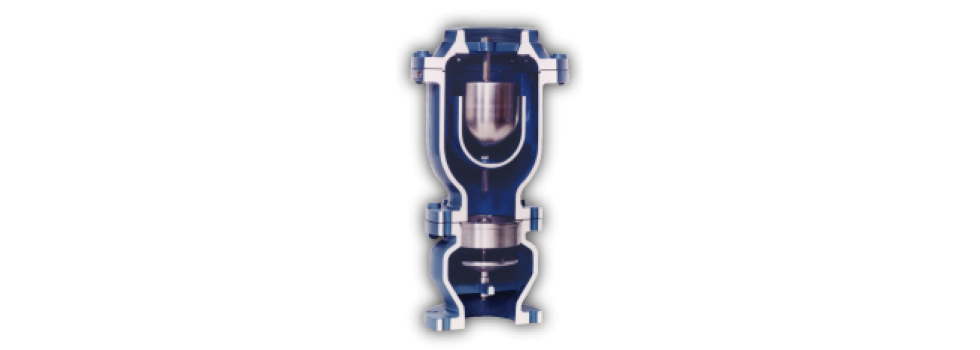

Valmatic Well Service Air Valves
Well Service Air Valves are a member of the Air/Vacuum family and are used with vertical pumps. Well Service Valves are specifically designed to vent the air from the pump column during pump start-up in a controlled manner before the check valve opens to reduce pressure surges that result from the accelerating water column.
- Available in sizes 1/2"-3" equipped with Dual Port Throttling Device
- 4" and larger equipped with Regulated-Exhaust Device mounted on the inlet
- Regulates the exhaust of air on pump start-up
- Admits air to protect pump and mechanical seals
- Protects against air-related surges on pump start-up
- Manufactured under a certified ISO 9001 quality system
- Automated Sizing Program
|
|
