Orbinox XC (SER.14) MODEL

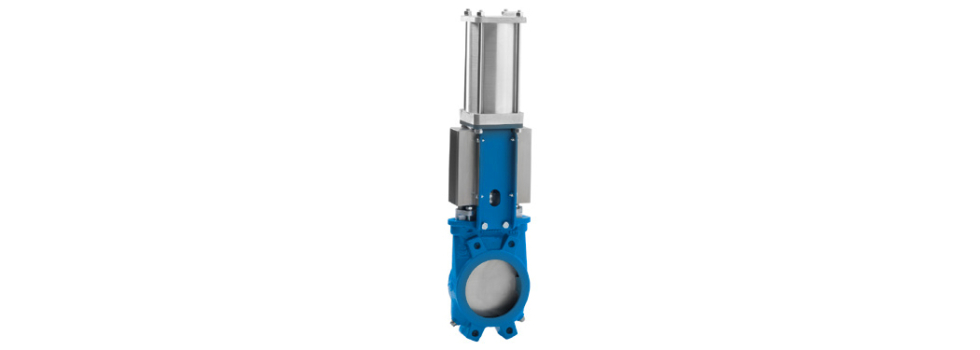

Uni-directional hopper shape wafer style knife gate valve for discharge, material and bulk handling applications

The XC model knife gate is a wafer valve designed for industrial bulk handling service applications (powdered and granular products). The special design of the body allows for easy passage of the fluid and makes it ideal for use as silo outlet valve. Widely used in industries such as:

  • Power plants
  • Food and Beverage
  • Chemical plants
  • Mining
  • Etc.

Valve is usually installed under silos or hoppers in vertical pipes with the seat in the upstream side of the valve in order to protect it from the solids flow. This set up helps to protect the seat from premature wear and gate jamming due to solid build-up.

Sizes

  • DN 50 to DN 600 (larger diameters on request)

Working Pressure

  • DN 50 to 250: 10 bar
  • DN 300 to 400: 6 bar
  • DN 450: 5 bar
  • DN 500 to 600: 4 bar

For specific tightness requirements contact ORBINOX technical department

Standard Flange Connection

  • EN1092 PN10
  • NSI B16.5 (class 150)
