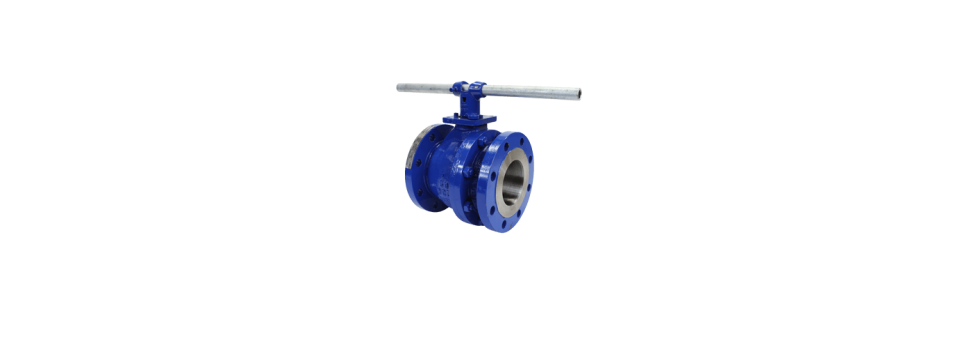

Elite ZF1 2-Piece Carbon Steel Ball Valve

Class 150 | Flanged | 1/2″ to 8″ | Full Port | ASTM A216

Product Description

Delivering a carbon steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 2-piece carbon steel ball valve will withstand the harshest of operating conditions and service environments.

Features Include

  • Cavity relieving seats, anti-static device
  • Blow-out proof stem
  • ISO mounting pad, direct mounting
  • Full bore, 2 piece body floating ball
  • Full port
  • Sizes – Lever operated 2” to 6”, gear operated 8”
  • Available in sizes of 1/2″ to 8″
  • Class 150 pressure rated

Specifications

  • Pressure Test per API 598
  • Design Standard per API 608
  • NACE MR0175
  • Flanges to ASME/ANSI B16.5
  • Face to Face to ASME/ANSI B16.10 Long Pattern
  • Designed to ASME/ANSI Class 150-B16.34
  • Fire-safe to API-607, latest Ed.

End Connection

  • Flanged (NPT)
