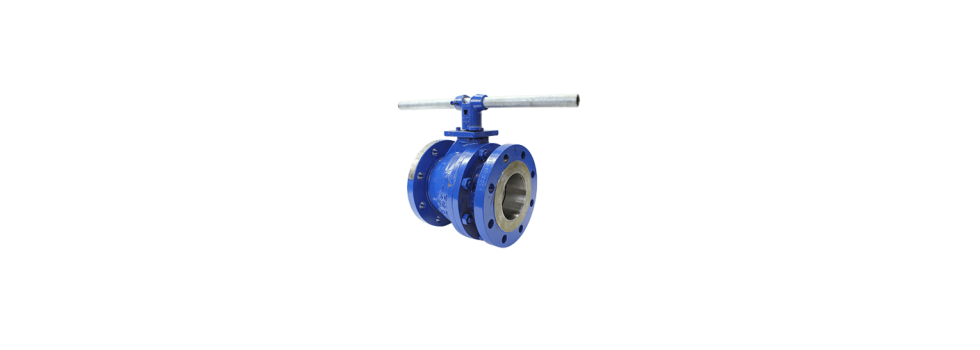

Elite ZF1 2-Piece Low Temperature Carbon Steel Ball Valve
Class 150 | Flanged | 1/2″ to 8″ | Full Port | ASTM A352
Product Description
Delivering a low temperature carbon steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 2-piece low temperature carbon steel ball valve will withstand the harshest of operating conditions and service environments.
Features Include
- Full port
- Lever operated 2”-6”, gear operated 8”
- Cavity relieving seats, anti-static device
- Blow-out proof stem
- ISO mounting pad, direct mounting
- Full bore, 2 piece body floating ball
- Available in sizes of 1/2″ to 8″
- Class 150 pressure rating
Specifications
- Pressure Test per API 598
- Design Standard per API 608
- NACE MR0175
- Flanges to ASME/ANSI B16.5
- Face to Face to ASME/ANSI B16.10 Long Pattern
- Designed to ASME/ANSI Class 150-B16.34
- Fire-safe to API-607, latest Ed.
End Connection
|
|
