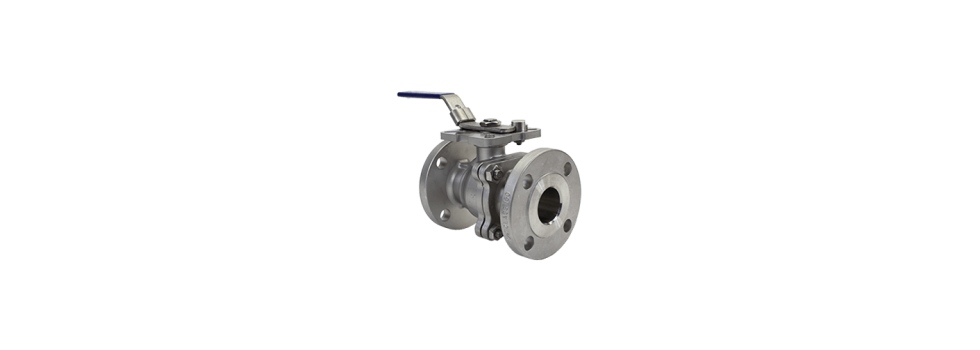

Elite ZF1 2-Piece Stainless Steel Ball Valve
Class 150 | Flanged | 1/4″ to 6″ | Full Port | ASTM A351
Product Description
Delivering a stainless steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 2-piece stainless steel ball valve will withstand the harshest of operating conditions and service environments.
Features Include
- Lever operated
- Cavity Relieved seats, anti-static device
- Blow-out proof stem
- ISO mounting pad, direct mounting
- Full bore, 2 piece body floating ball
- Full port
- Available in sizes of 1/4″ to 2″
- Pressure rated at 1000 PSI (69 bar) WOG
Specifications
- Fire-safe to API-607, latest Ed.
- Pressure Test per API 598
- Markings per MSS-SP25
- Design Standard per API 608
- NACE MR0175
- Flanged designed per ASME/ANSI B16.5
- Face to Face per ASME/ANSI B16.10 Long Pattern
- Designed according to ASME/ANSI Class 150 B16.34
End Connection
|
|
