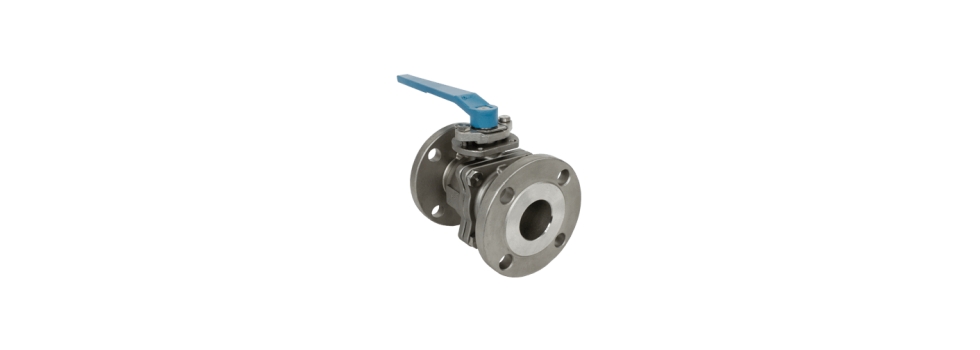

Elite ZF1 2-Piece Stainless Steel Ball Valve

Class 150 | Flanged | 1/2″ to 12″ | Non Direct Mount | Full Port | ASTM A351

Product Description

Delivering a stainless steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 2-piece stainless steel ball valve will withstand the harshest of operating conditions and service environments.

Features Include

  • Lever operated
  • Cavity Relieved seats, anti-static device
  • Blow-out proof stem
  • ISO mounting pad, non direct mounting
  • Full bore, 2 piece body floating ball
  • Available in sizes of 1/2″ to 12″
  • Full port
  • Pressure rated at Class 150

Specifications

  • Fire-safe to API-607, latest Ed.
  • Pressure Test per API 598
  • Markings per MSS-SP25
  • Design Standard per API 608
  • NACE MR0175
  • Flanged designed per ASME/ANSI B16.5
  • Face to Face per ASME/ANSI B16.10 Long Pattern
  • Designed according to ASME/ANSI Class 150 B16.34

End Connection

  • Flanged (FLG)
