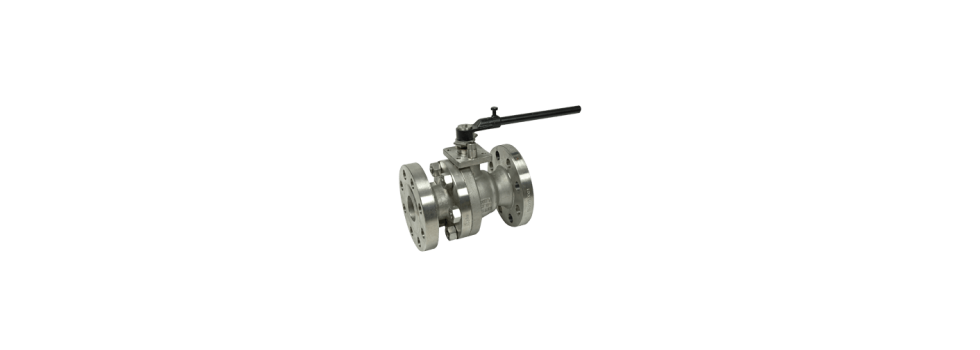

Elite ZF3 2-Piece Stainless Steel Ball Valve

Class 300 | Flanged | 2″ to 8” | Full Port | ASTM A351

Product Description

Delivering a stainless steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 2-piece stainless steel ball valve will withstand the harshest of operating conditions and service environments.

Features Include

  • Lever operated 2”-6”, gear operated 8”
  • Cavity relieving seats, anti-static device
  • Blow-out proof stem
  • ISO mounting pad
  • Full bore, 2 piece body floating ball
  • Full port
  • Available in sizes of 2″ to 8″
  • Pressure rated to Class 300

Specifications

  • Fire-safe to API-607, latest Ed.
  • Pressure Test per API 598
  • Markings per MSS-SP25
  • Design Standard per API 608
  • NACE MR0175
  • Flanges to ASME/ANSI B16.5
  • Face to Face to ASME/ANSI B16.10 Long Pattern
  • Designed to ASME/ANSI Class 300-B16.34

End Connection

  • Flanged (FLG)
