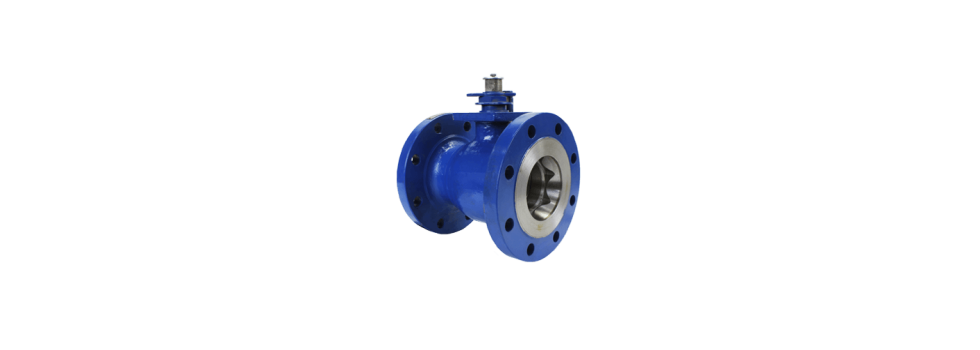

Elite ZR1 1-Piece Carbon Steel Ball Valve
Class 150 | Flanged | 2″ to 8″ | Regular Port | ASTM A216
Product Description
Delivering a carbon steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 1-piece carbon steel ball valve will withstand the harshest of operating conditions and service environments.
Features Include
- Low temperature carbon steel
- Regular-Port
- Lever operated
- Cavity relieving seats, anti-static device
- Blow-out proof stem
- ISO mounting pad
- Reduced bore, 1 piece uni-body floating ball
- Available in sizes of 2” x 1½” to 8” x 6”
- Class 150 pressure rated
Specifications
- Pressure Test per API 598
- Design Standard per API 608
- NACE MR0175
- Markings per MSS-SP25
- Face to Face to ASME/ANSI B16.10 Short Pattern
- Designed to ASME/ANSI Class 150-B16.34
- Fire-safe to API-607, latest Ed.
End Connection
|
|
