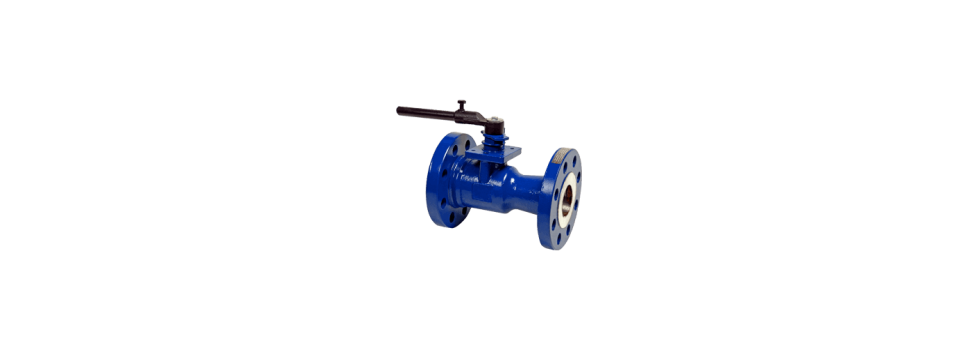

Elite ZR3 1-Piece Carbon Steel Ball Valve

Class 300 | Flanged | 2″ to 6″ | Regular Port | ASTM A216

Product Description

Delivering a carbon steel ball valve, that is both long-lasting and cost effective, Elite Valve manufactures solutions that are best suited for industrial and commercial use. Perfect for liquid, gas, steam and water applications, Elite Valve’s 1-piece carbon steel ball valve will withstand the harshest of operating conditions and service environments.

Features Include

• Regular-Port
• Lever operated
• Cavity relieving seats, anti-static device
• Blow-out proof stem
• ISO mounting pad
• Reduce bore, 1 piece uni-body floating ball
• Available in sizes of 2″ to 6″
• Class 300 pressure rated

Specifications

• Pressure Test per API 598
• Markings per MSS-SP25
• Design Standard per API 608
• NACE MR0175
• Face to Face to ASME/ANSI B16.10 Short Pattern
• Designed to ASME/ANSI Class 300-B16.34
• Fire-safe to API-607, latest Ed.

End Connection

• Flanged (FLG)
