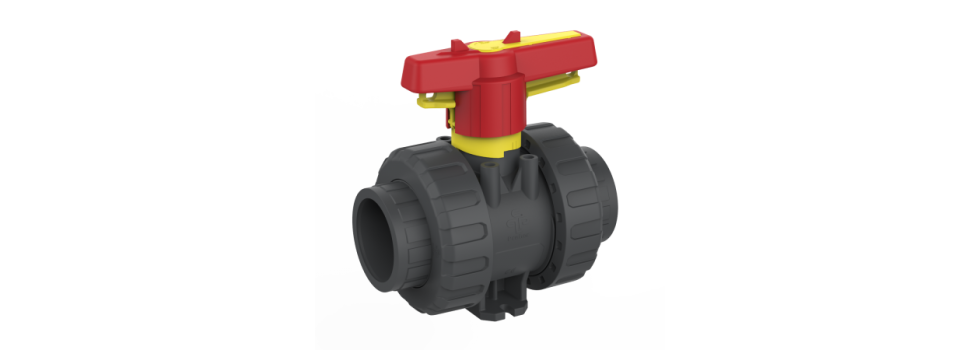

Praher 2-way Ball Valve M1 PVC-U
- Modular design: easy switch between different configurations due to special features and fitting devices
- Silicon-free
- Buttress thread for perfect fit of the union nut

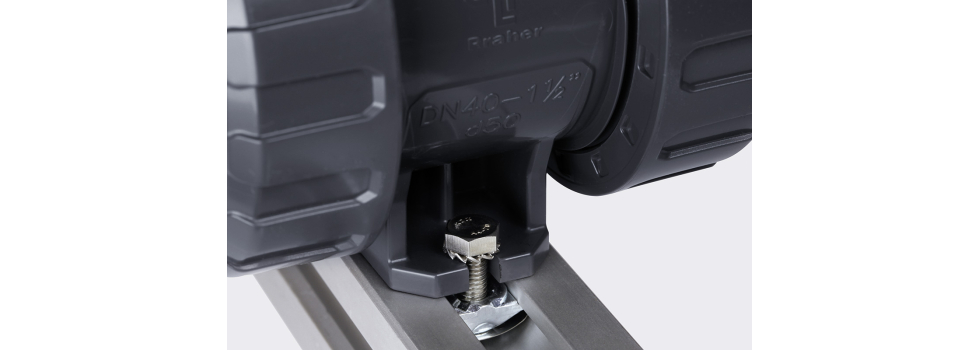

- Integrated bracket for fix point mounting
- Integrated fixations for the modular adapter set: one-piece injected valve body
- Cushion O-ring for PTFE-seat
- Double sealed shaft
- Locking handle with integrated PLS (Praher Labelling System)
- Version with plastic screws available on request
| Seal materials |
EPDM, FPM |
| Ball seating joint |
PTFE |
| Dimensions |
DN10/d16/3/8" – DN80/d110/4" |
| Pressure rates |
PN16 |
| Connections |

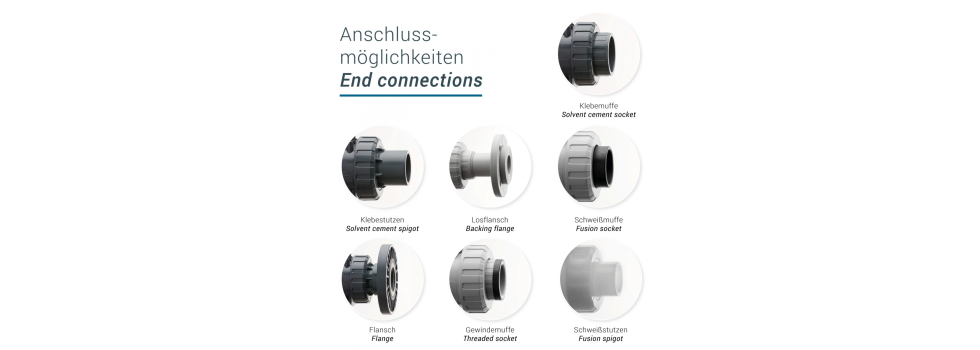

flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket |
| Approvals |
KIWA NSF/ANSI/CAN 61, ACS |
Data Sheet
|
|
